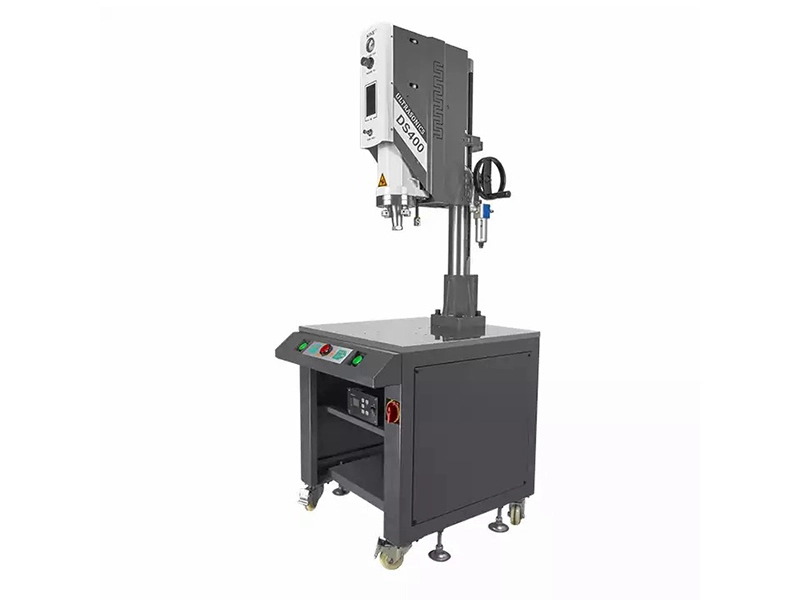

Standard Ultrasonic Plastic Welding Machine With Table Ds400t 1

Standard Ultrasonic Plastic Welding Machine With Table Ds400t 2

Standard Ultrasonic Plastic Welding Machine With Table Ds400t 3

Standard Ultrasonic Plastic Welding Machine With Table Ds400t 4

Standard Ultrasonic Plastic Welding Machine With Table Ds400t 5

Standard Ultrasonic Plastic Welding Machine With Table Ds400t

Various modes and Supplements

15KHz-20KHz frequency, 3000W-4200W power.

High-Quality Transducer

with high-quality transducer, powerful and stable.

Titanium Alloy Booster

Titanium alloy booster, solid and durable.

Inquiry

Write a Review

Product Detail

H09e99d7ae36e4bf7a79a935e96f04b7aa

H556ff572af8b459c8fe1af1948e4cc44c

H7704f4f0b5d34bf8b058ca12c241e792b

Ha2af8f6b59364a2792301125bdb27e4eb

Product description

The DS400T series ultrasonic plastic welding machine is with high welding stability, powerful functions, stable operation, more guaranteed quality, and thickened gravity die-casting process. Widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation, and other fields.

Product description

Integrated with time, energy, ground, absolute position, relative position, and pressure welding modes, the FU2025 series ultrasonic plastic welder also has various triggering modes and various functions. Ports are also provided to support the installation of auxiliary equipment such as tooling clamping, X, and Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, etc., just pair up and set the corresponding ports.

A high-performance ultrasonic welding system combined with sturdy equipment with accurate and well-practiced drive management components realizes the whole process control before, during, and after welding, and can meet complex working conditions and high-precision welding requirements. Application industries include automotive, medical, food, packaging, electricity, hygiene, etc.

♦ PRESSURE GAUGE

Pressure Gauge Monitor

The ultrasonic plastic welding machine's pressure gauge interface can help you monitor the work process at all times.

♦ CIRCUIT

Integrated Circuit

The modular integrated circuit of the ultrasonic welding generator is easy to maintain.

♦ LEVEL CONTROL

Level Control System

The ultrasonic plastic welding machine is equipped with a level control system, which makes it more convenient to adjust the transducer and sonotrode.

Product parameters

Frequency	15KHz	15KHz	15KHz	20KHz	20KHz	30KHz	35KHz	40KHz
Power	4200W	3200W	2600W	3000W	2500W	1200W	1200W	800W
Welding stroke	100mm	75mm	75mm	75mm	75mm	75mm	75mm	75mm
Max.Weld Force	3020N	3020N	3020N	1870N	1870N	1170N	1170N	1170N
Motion System	Pneumatics
Voltage	200-240VAC stable output
Accuracy	±0.15mm
Welding mode	Time/Energy/Time+Energy/Ground Detect
Trigger mode	Delay time/External
Intelligent management	Amplitude/Quality/Data/Safety Management
Operating Device	4.3 inches touch screen panel
Feature	Welding record/data statistics
Weight	About 150kg
Dimension	L650mmW750mmH1880mm
Warranty	1 year
Optional auxiliary equipment	Tooling clamping, X, and Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, etc.

Product display

ultrasonic welding for toy

ultrasonic welding for phone

ultrasonic welding for filter equipment

ultrasonic welding for electronics (2)

ultrasonic welding for convertor

ultrasonic welding for car light
