Product description

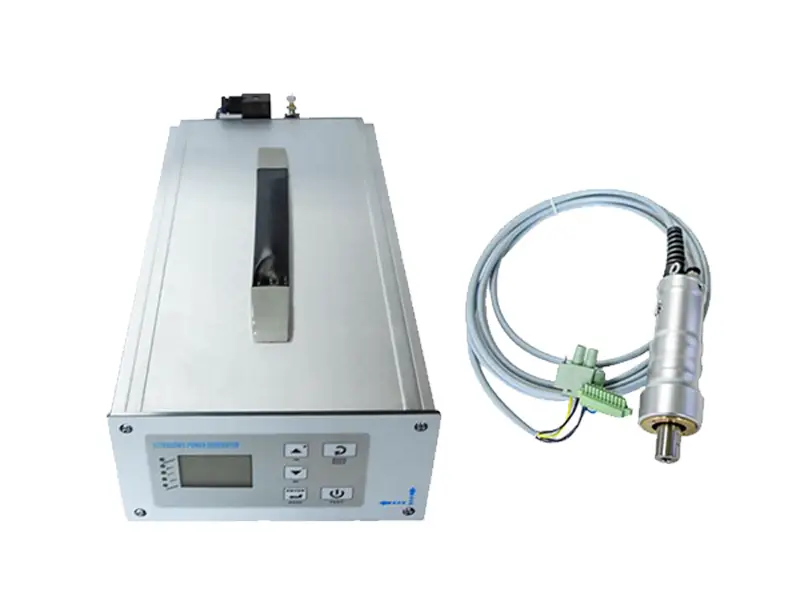

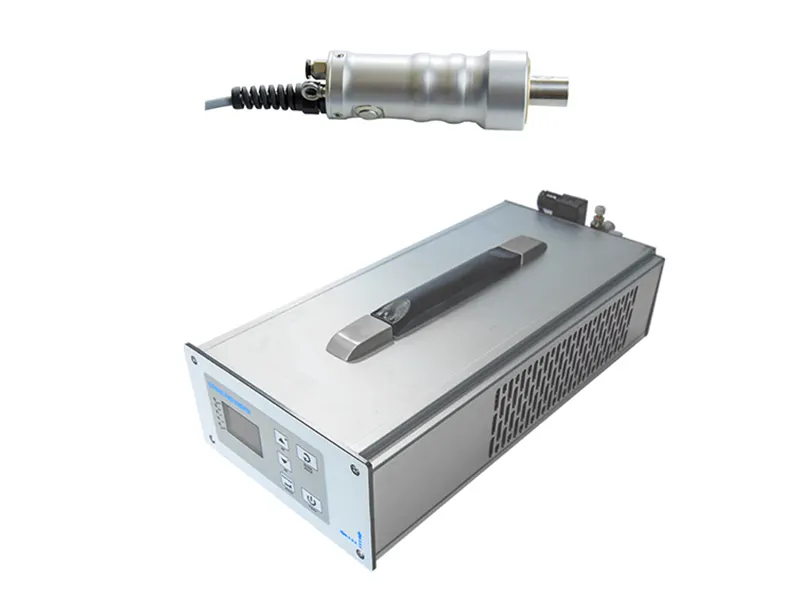

The ultrasonic hand welder is rugged and lightweight and with an ergonomic product design, consists of an intelligent ultrasonic generator and a hand welder gun, which is easy to operate and can be used for embossing, staking, riveting, and spot welding applications, this brings enormous advantages to the wide industry use such as automotive, electronics, customer goods, etc.
35kHz operating frequency;
Customized, removable sonotrodes;
1200W rated power.
♦ DIGITAL GENERATOR

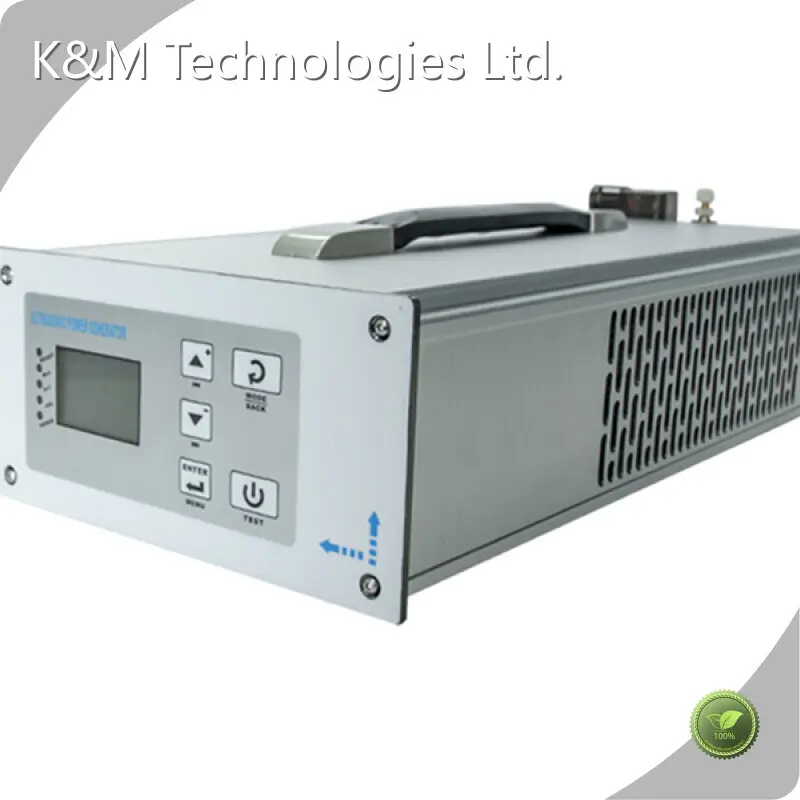

Digital Ultrasonic Generator
This is the digital ultrasonic generator, which has the function of automatic frequency tracking, amplitude compensation, overload, voltage, and transducer protection. The welding amplitude is 10%–100% adjustable (1% accuracy). A handle is installed on the top panel of the ultrasonic generator for easy handling. The electromagnetic valve is installed behind the generator for air cooling function of the ultrasonic welding horn/mold.
♦ HANDHELD SPOT GUN

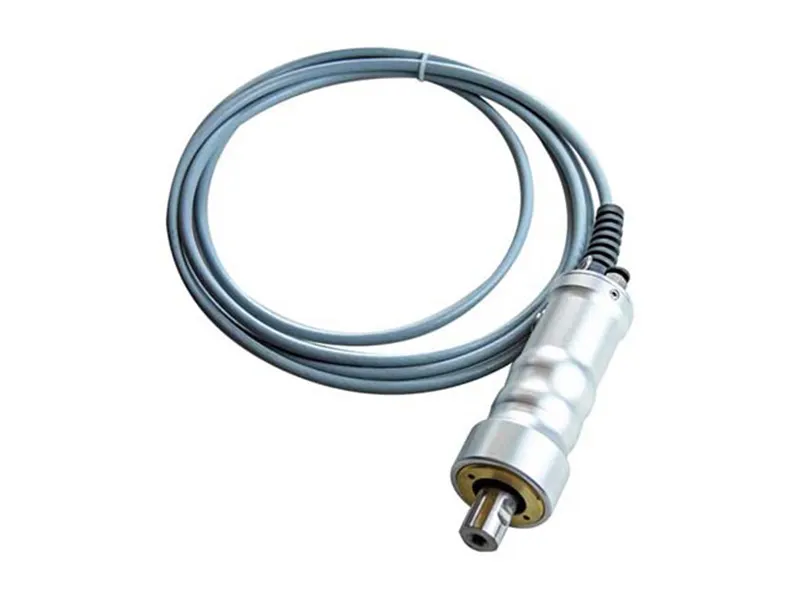

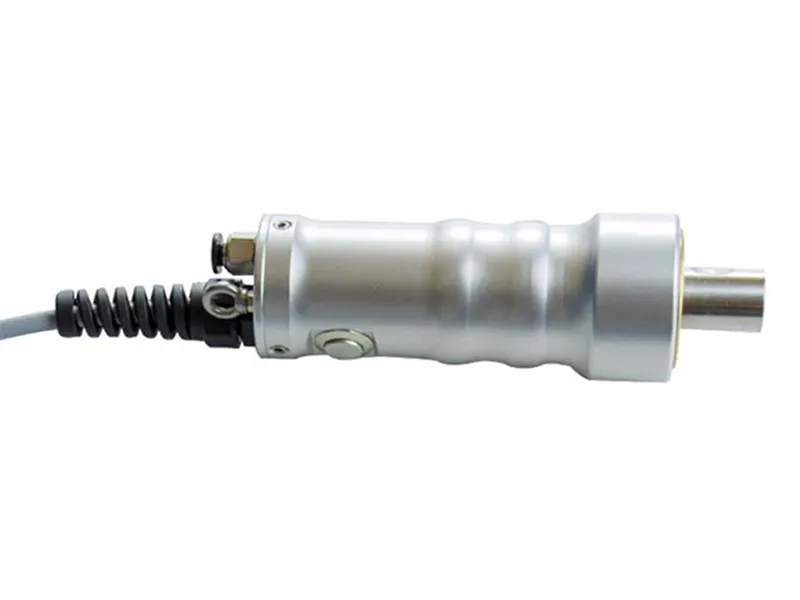

Ultrasonic Spot Gun
The ultrasonic spot welding gun is lightweight, which is easy to operate, just change the ultrasonic sonotrode to the welding gun per your applications(embossing, spotting, riveting, staking), and plastic welding is a typical application.
Product parameters
|
Model |
KM-HW3512 |
|
Frequency |
35kHz |
|
Frequency Range |
34.40-35.20kHz |
|
Welding amplitude |
10%–100% adjustable (1% accuracy) |
|
Power |
1200W |
|
Generator Dimension |
L390mm*W195mm*H100mm |
|
Generator Weight (KG) |
6kg |
|
Welding Gun Weight(KG) |
0.7kg |
|
Material of Sonotrode |
Titanium, Steel, Aluminum |
|
Welding Material |
ABS, PS, PVC, PMMA, PPS, PBT, PETG, PA, etc. |
Company Advantages
· The whole production process of KnMTech ultrasonic welding system is under the strict supervision of professionals.
· Various tests are conducted so that the product functions in the desired manner.
· The product under the KnMTech brand has continually grown and expanded in the international competition.
Company Features
· K&M Technologies Ltd. takes the leading position among ultrasonic welding system enterprises in China from aspects of human resource, technology, market, manufacturing capability and so on.
· The factory is situated at the intersection of transportation hubs. This geographical position has brought numerous benefits. For example, transportation costs have been significantly reduced.
· We pledge to put both business success and environment protection as our priority. We assume social responsibility during production to reduce carbon footprint as much as possible.
Application of the Product
The ultrasonic welding system developed by K&M Technologies Ltd. is widely used in industry.
K&M Technologies Ltd. has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
