Product Detail
Product description

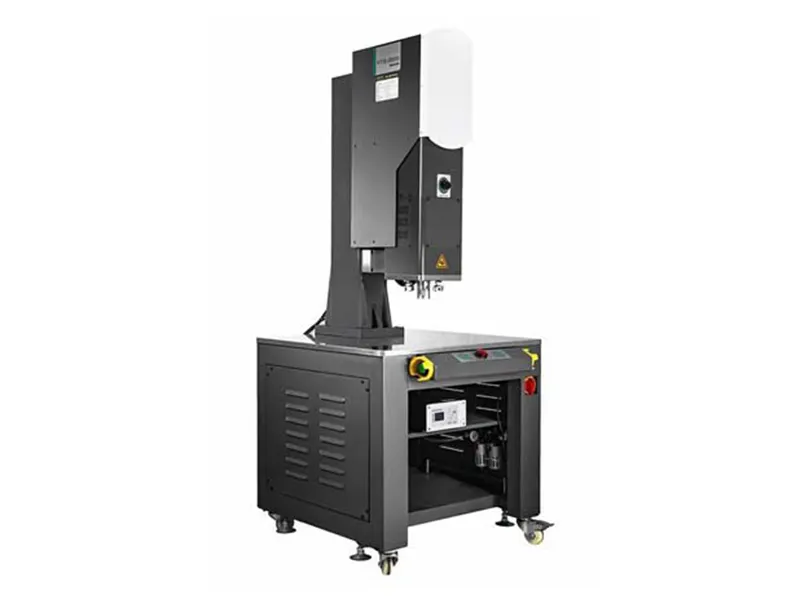

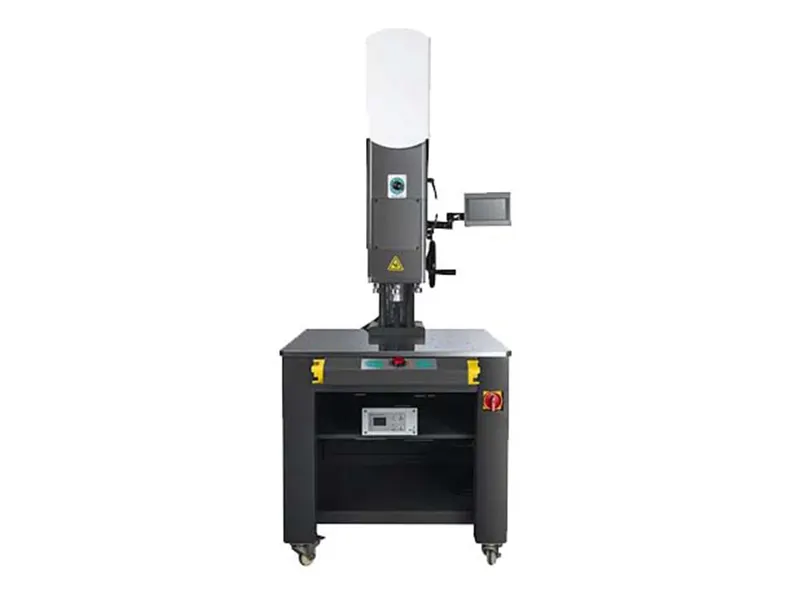

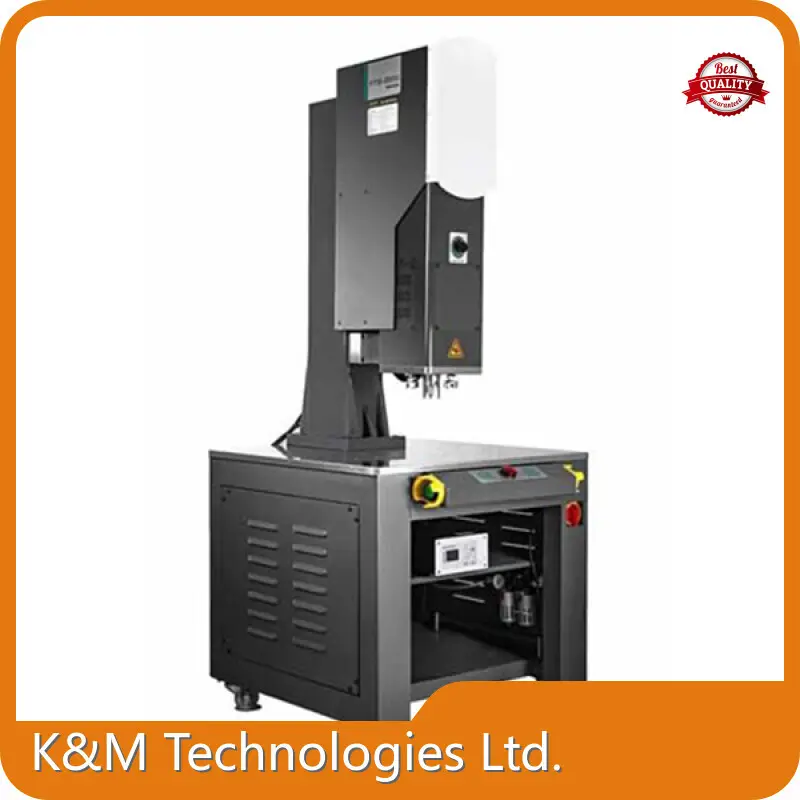

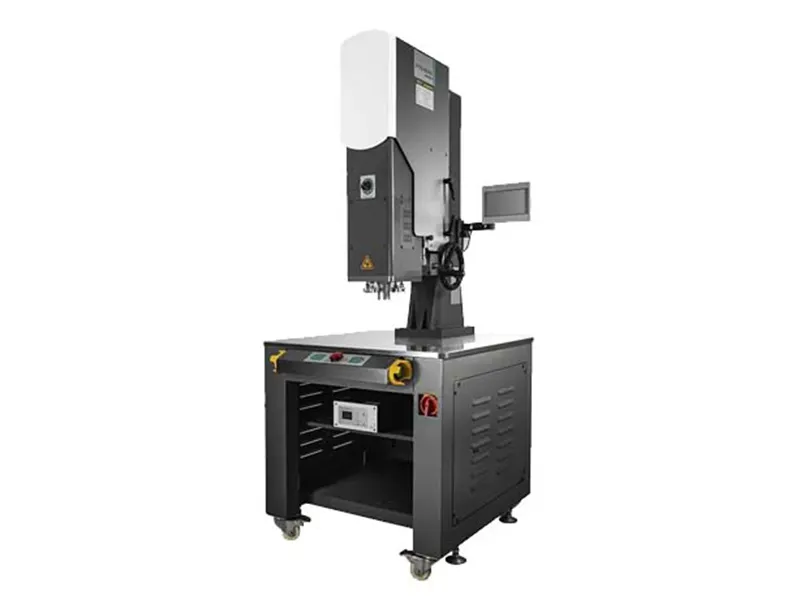

The PTS2000T series ultrasonic plastic welding machine has a digital ultrasonic generator( high-performance drive board, and full-bridge circuit drive, with over voltage and over current protection). All the welding parameters can be set via communication between the ultrasonic generator and the controller. Intelligent management involves amplitude management, quality management, data management, and safety management. The machine provides a user-friendly 7-inch full touch screen so that you can quickly operate the ultrasonic welder.
Optional Accessories:
Noise insulation shield, protection curtain, proportional valve, film winding device, X, Y line move device, etc.
♦ TOUCH SCREEN
7-inch External Touch Screen
The PTS2000T series ultrasonic welding machine has a 7-inch digital full touch screen, which is more intuitive and convenient.

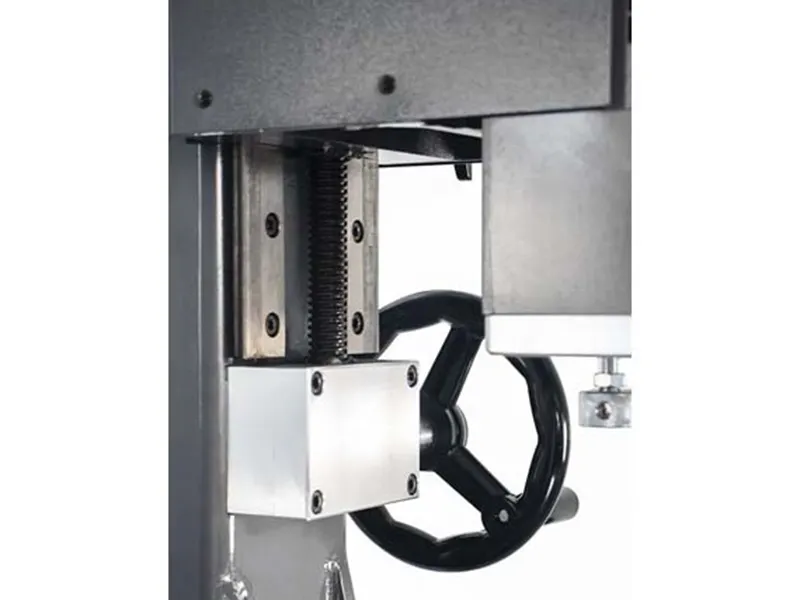

♦ FLANGE
High Precision Flange
The level control system has a high-precision flange to ensure you better fix the transducer position of the ultrasonic welding machine.
♦ SWITCH
Operation Switch
Based on ergonomic design and for safety, the ultrasonic welding machine is equipped with two start switch buttons.
Product parameters
|
Frequency |
15kHz 20kHz 35kHz |
|
Power |
3200W 3000W 1200W |
|
Max. Stroke |
100 mm 100mm 100mm |
|
Max.Weld Force |
3020N 1870N 1170N |
|
Motion System |
Pneumatics |
|
Voltage |
200-240VAC stable output |
|
Accuracy |
±0.03mm |
|
Welding mode |
Time/Energy/Ground/Absolute Depth/Relative Depth/Pressure |
|
Trigger mode |
Time/Pressure/Depth |
|
Intelligent management |
Amplitude/Quality/Data/Safety Management |
|
Operating Device |
10 inches touch screen panel |
|
Feature |
USB data export/welding record/data statistics |
|
Working rack |
Square column |
|
language |
Chinese/ English |
|
Warranty |
1 year |
|
Auxiliary equipment Support |
tooling clamping, X, and Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, etc. |
Company Advantages
· The design of KnMTech ultrasonic welder manufacturers is the combination of functionality and aesthetics.
· All of our ultrasonic welder manufacturers is of good enough quality.
· K&M Technologies Ltd. will provide delivery and shipping rate to assist customers to make purchase plan.
Company Features
· K&M Technologies Ltd. exports ultrasonic welder manufacturers to many countries on a basis of professional sales members and abundant know-how on trade business.
· Highly advanced technologies and latest equipment are used while fabricating ultrasonic welder manufacturers.
· K&M Technologies Ltd. provides customers with excellent products and services. Get an offer!
Application of the Product
The ultrasonic welder manufacturers produced by our company is widely used.
We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
