Ultrasonic Seam Welder Factory Price for Electronic Power

Product description

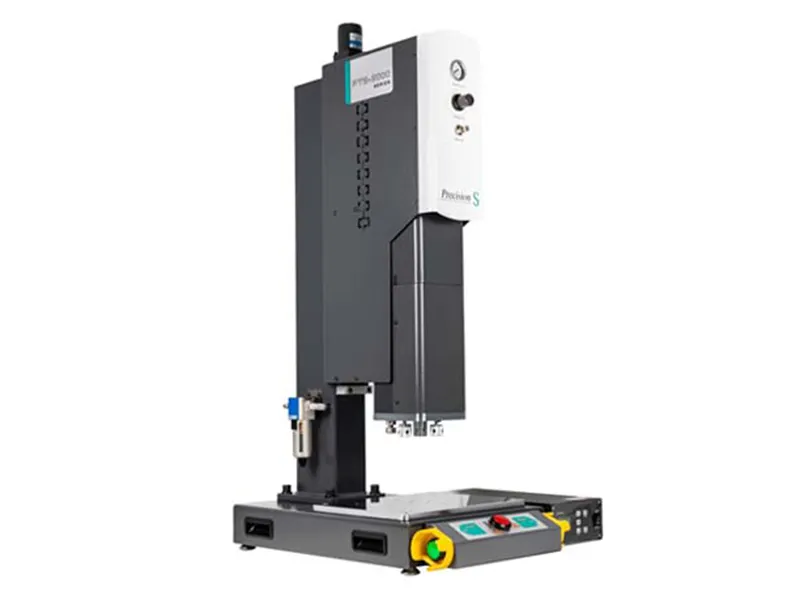

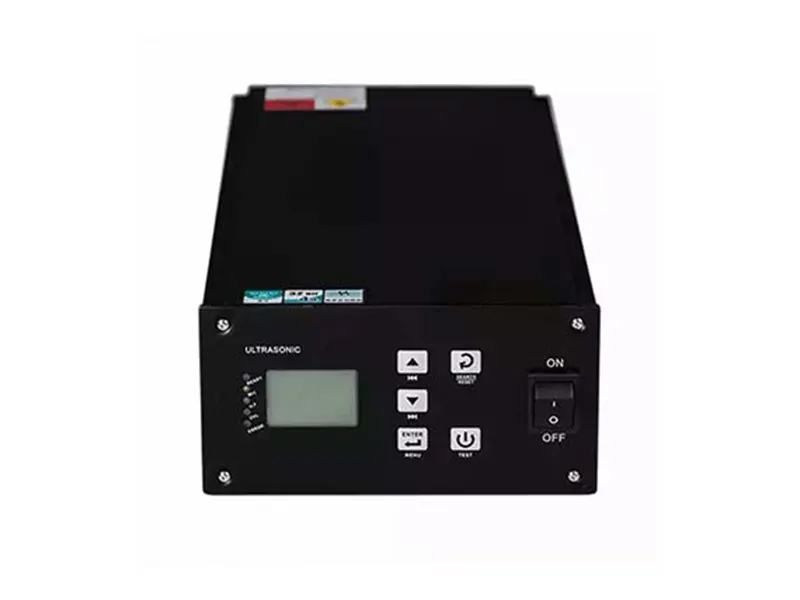

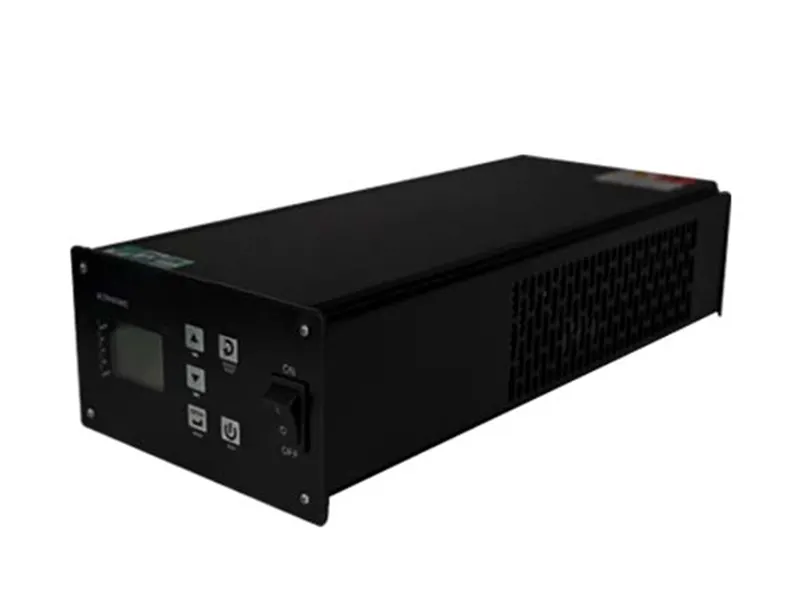

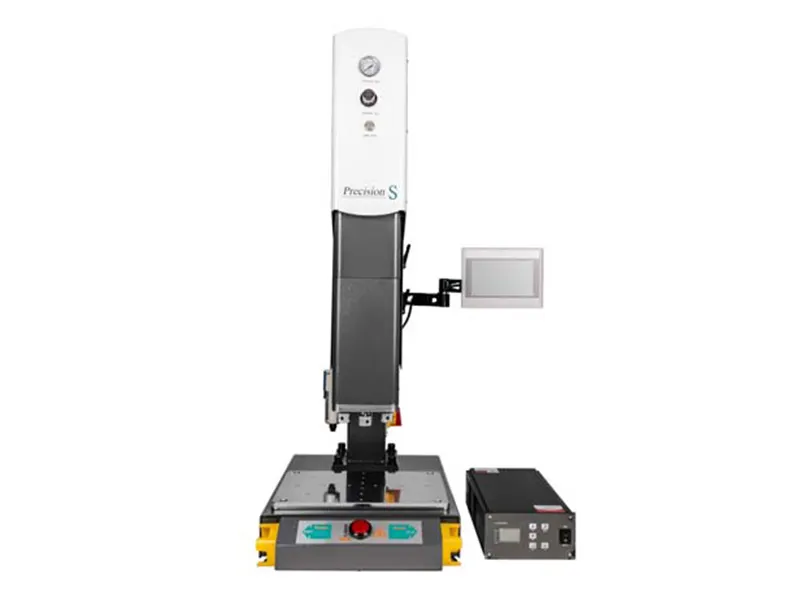

The PTS2000 series ultrasonic welding machine is equipped with an external 7-inch touchscreen display panel, which is intuitive and convenient to program and view parameters. Equipped with a 100% digitally controlled ultrasonic generator,  the ultrasonic welder realizes real-time automatic frequency tracking, and circuit protection functions.

With three welding modes(time, energy, time+energy), three amplitude management(fixed, stage(time), and stage(energy) ), quality, data, and safety management are combined to accurately control your welding process for consistent and reliable welding results.

Integrated with various high-precision control technologies such as the mechanical pressure sensor, balance system, positioning system, lifting system, etc., additional ports are also provided for supporting the optional auxiliary equipment such as  X, and Y shifters, acoustic enclosures, membrane winders, protective light curtains, etc., PTS series ultrasonic welding machine can meet your high welding requirements on site.

♦ STRUCTURE

Ultra-Rigid Structure

The ultra-rigid structure provides reduced deflection for superior weld consistency.  The micrometer-scale positioning system on the right side of the equipment ensures the accuracy of the welding position, and the linear sliding rail lifting System controls the rise and fall of the welding head electrically, making the ultrasonic plastic welder easy to use and with high performance.

♦ INTELLIGENT MANAGEMENT

Four Intelligent Management

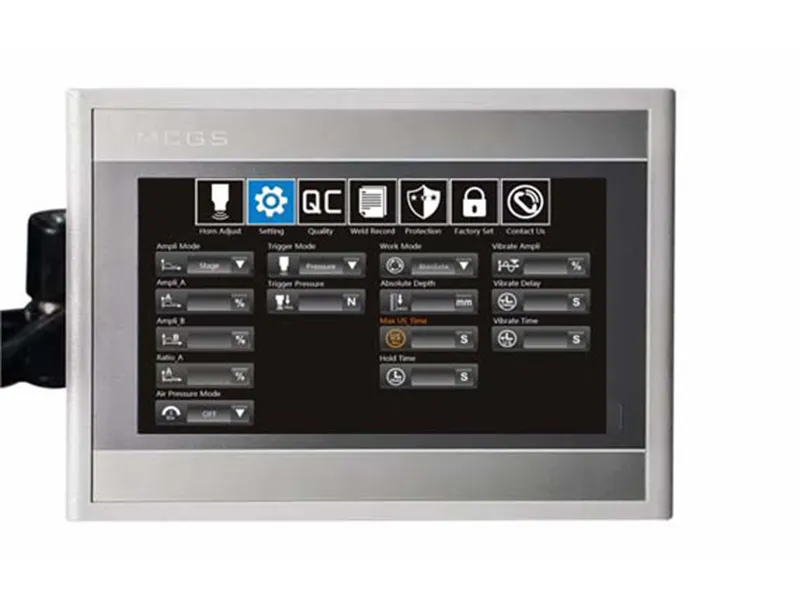

The PTS2000 series ultrasonic welding machine has a 7-inch user interface with a full touch screen for intuitive operation and program;  Four intelligent managements for amplitude, quality, data, and safety, ensuring precise control of the welding process and consistent and reliable weld results.
