Company Advantages
· KnMTech ultrasonic welding system is strictly manufactured in line with the production procedure.
· Reliable quality and durability are our competitive advantages.
· K&M Technologies Ltd. is full of vitality, energy and warrior spirit.
Product Detail
Product description

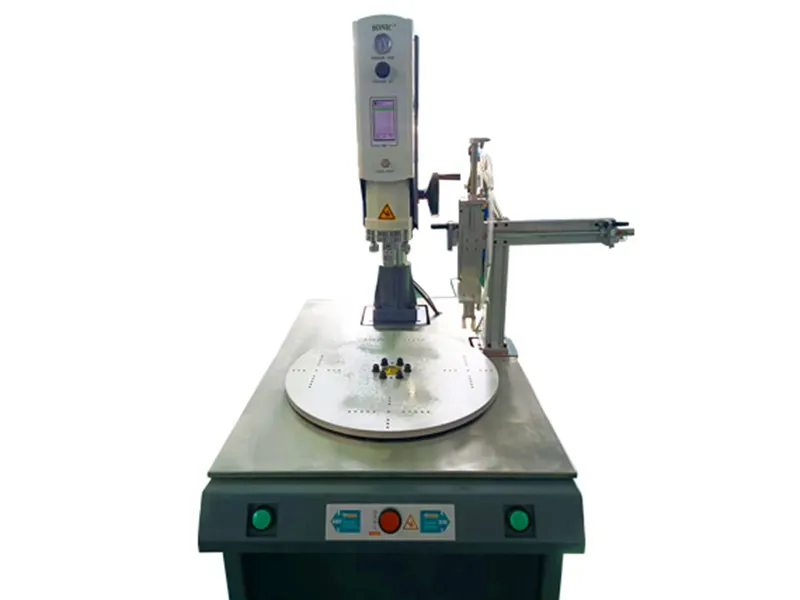

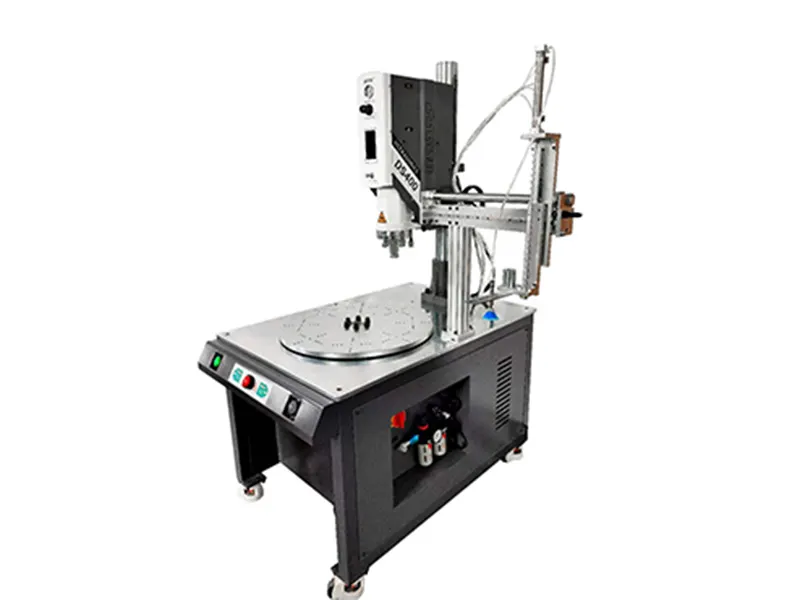

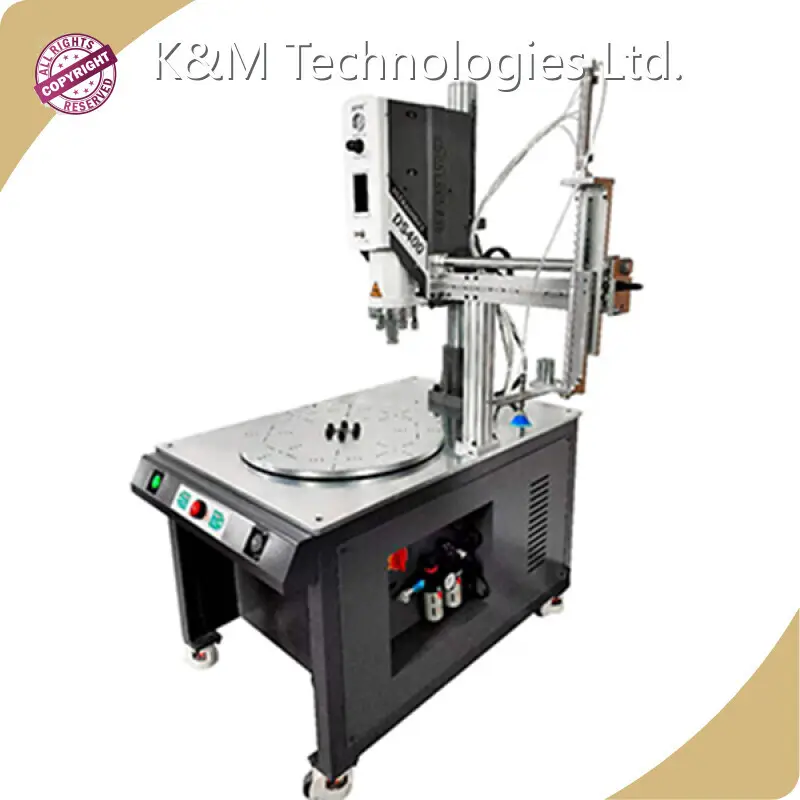

An automatic ultrasonic rotary welding machine, referred to as a turntable ultrasonic welding machine, is a semi-automatic machine that uses the functions of a standard ultrasonic welding machine with an automatic turntable to improve production efficiency. This machine can manually place the material, automatically ultrasonic weld, and then be equipped with a robot to grab the product. It can also be designed to manually place the material, automatically weld and then manually pick up the product at the end, or a higher-end full automatic production: robot automatically places the material, automatically welds, and then automatically picks up the product at the end. By choosing the ultrasonic rotary welding machine and manipulators, you can batch weld work, increase efficiency, and output, and save labor. The production process is diversified, you can choose the ultrasonic welding machine per your different needs and conditions.
Product parameters
Frequency |
15kHz 15KHz 15KHz 20KHz 20KHz 30KHz 35KHz 40KHz |
Power |
4200W 3200W 2600W 3000W 2500W 1200W 1200W 800W |
Welding stroke |
100mm 75mm 75mm 75mm 75mm 75mm 75mm 75mm |
Max.Weld Force |
3020N 3020N 3020N 1870N 1870N 1170N 1170N 1170N |
Motion System |
Pneumatics |
Voltage |
200-240VAC stable output |
Accuracy |
±0.15mm |
Welding mode |
Time/Energy/Time+Energy/Ground Detect |
Trigger mode |
Delay time/External |
Intelligent management |
Amplitude/Quality/Data/Safety Management |
Operating Device |
4.3 inches touch screen panel |
Feature |
Welding record/data statistics |
Working rack |
Square column |
language |
Chinese/ English |
Work Stations |
8 stations( can be customized) |
Warranty |
1 year |
Optional auxiliary equipment |
Tooling clamping, X, and Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, etc. |
Company Features
· K&M Technologies Ltd. excels in designing, manufacturing, and marketing high-quality products. We are a qualified manufacturer and supplier of ultrasonic welding system.
· Our company has the latest manufacturing facilities. And we make the investment in these facilities each year to embrace the latest technology and improve productivity to maintain tomorrow's growth. Our company has state-of-the-art manufacturing facilities. In fact, we have made a significant investment in the equipment to allow for more throughput and a better production process. Our manufacturing team consists of experienced experts. Whether as a standard solution or a custom solution, they produce high-quality products including ultrasonic welding system with high sensitivity every day.
· Our business goal is to improve our production efficiency by using new production technologies to reduce emissions and increase recycling.
Product Details
In the production process of ultrasonic welding system, we carefully polish the details, so as to strive for perfect quality.
