Practical Ultrasonic Cake Cutting Machine Vendor for Hospital
Product details of the ultrasonic cake cutting machine
Product Introduction
The production process of KnMTech ultrasonic cake cutting machine is stringently monitored and controlled. The product is zero-defect as we implement strict inspection on each stage of produciton process. K&M Technologies Ltd. has already successfully exported many countries and got good reputation in ultrasonic cake cutting machine industry.
Product Detail
Product description

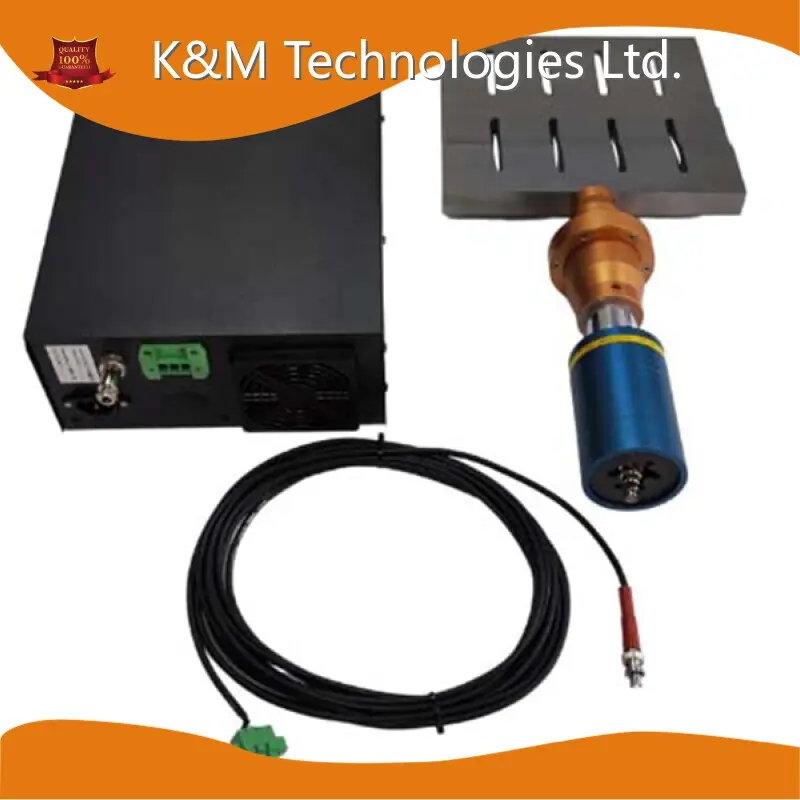

The ultrasonic food cutting system includes a generator, a converter, a booster, and a blade. The generator converts 50/60Hz AC line to high-frequency electrical energy, then transfers it to the converter, the converter uses its electromechanical features to convert the electrical energy into high-frequency vibration, then transfers the vibration to the booster, which can either raise or lower the amplitude of the blade’s mechanical motion depending on its design, then the booster transfers the vibration to the blade, which does the cutting process with high-frequency vibration. The ultrasonic food cutting system can be used in continuous cutting and can be integrated into manual food cutting machines or automated food cutting machines. Welcome to contact us for details!
Digital Ultrasonic Power Supply
The digital ultrasonic generator converts the AC electrical power supply current into a high frequency, high voltage electrical signal. The ultrasonic generator is available in 20,30,35,40KHz. Working amplitude is adjustable 10%-100% (1% accuracy). Through the digital ultrasonic generator, you can control the food cutting process by setting the related parameters. Easy and intuitive.
♦ CUTTING BLADE
Titanium Alloy Ultrasonic Cutting Blade
Food cutting blades are designed and manufactured through FEA analysis and are made of titanium alloy to ensure efficient and high-quality operation. The titanium alloy ultrasonic blade produces a virtually frictionless surface during cutting, minimizing sticking and deformation of the cut food.
Product parameters
|
Model |
KM-UFC20255 |
|
Frequency |
20KHz |
|
Power |
2000W |
|
Material of Blade |
Food industry approved Titanium |
|
Cutting Width |
255mm |
|
Cutting Height |
100mm |
|
Input AC |
110, 50/60Hz |
|
Generator |
Digital, Auto-tuning |
|
Cutter Type |
Full wave length ultrasonic food cutter |
|
Generator Weight |
5kg |
|
Transducer Weight |
3kg |
|
Blade Weight |
2kg |
|
Dimension of Generator(L*W*H) |
240mm*400mm*120mm |
Technical parameters for adapting blade types
|
Working Frequency |
20KHz 20KHz 20KHz 20KHz 20KHz |
|
Power |
2000W 2000W 2000W 2000W 2000W |
|
Cutting Width |
95mm 200mm 255mm 305mm 350mm |
|
Cutting Height |
60mm-260mm, customized(full wave or half wave optional) |
Adaptable knife type
Company Feature
• K&M Technologies Ltd. is dedicated to providing satisfactory services based on customer demand.
• K&M Technologies Ltd. was founded in In the past years, we have constantly developed new products to meet market demand by taking the market as the guide, by taking products as the core and taking technology as the method. We are committed to providing high-quality products and comprehensive services.
• K&M Technologies Ltd. enjoys an excellent geographical location with traffic convenience. They are a good foundation for our own development.
• K&M Technologies Ltd.'s products are sold to major cities in China and exported to countries and regions such as Asia, Europe, and Africa.
K&M Technologies Ltd. will be right here waiting for you. If you have any problems, feel free to consult us.
