KnMTech Ultrasonic Welder for Sale Ultrasonic Welder for Saleseries
Company Advantages
· KnMTech ultrasonic welder for sale conforms to the product design specifications.
· With reliable quality, this product holds up well over time.
· K&M Technologies Ltd. has grown considerably since its foundation.
Product Detail
Product description

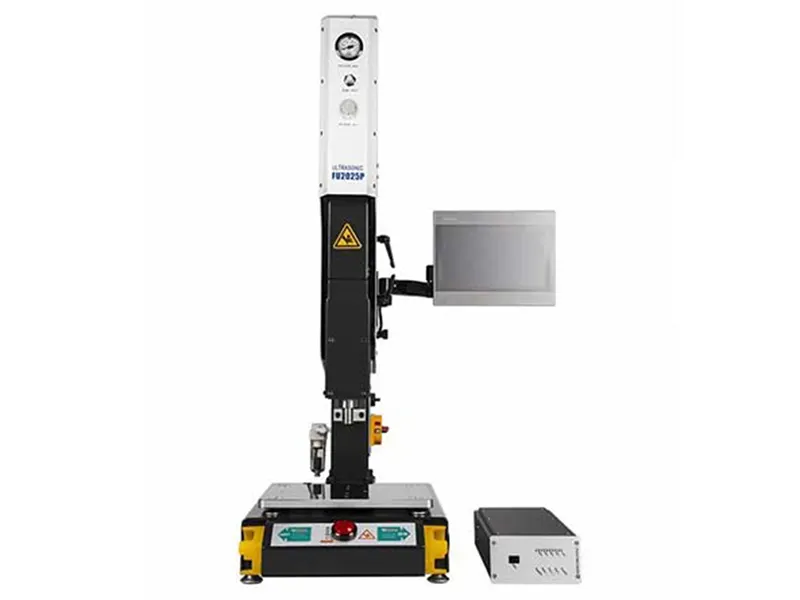

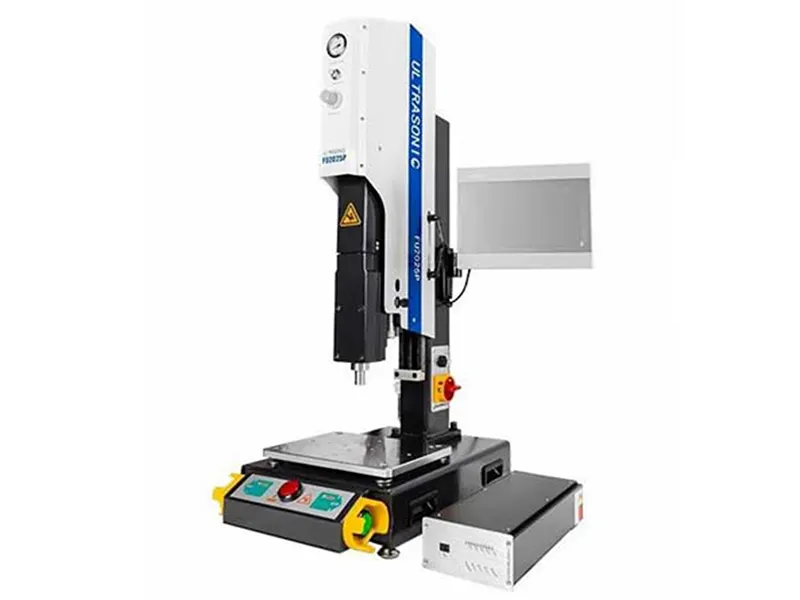

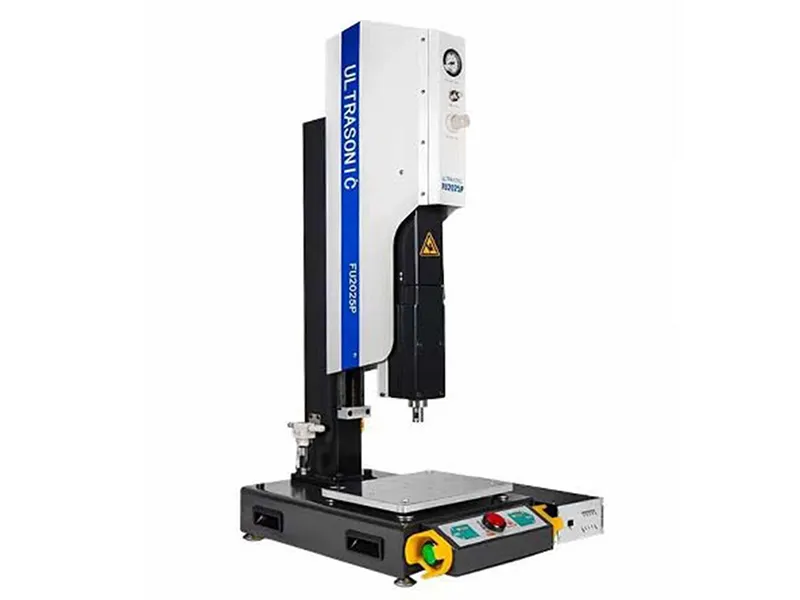

Based on integrated precise control technology of level control system, lifting system, positioning system, and pressure sensor, the FU2025 series ultrasonic plastic welding machine features an upgraded intelligent management system, including welding amplitude management, sonotrode management, quality management, data management, and safety management.

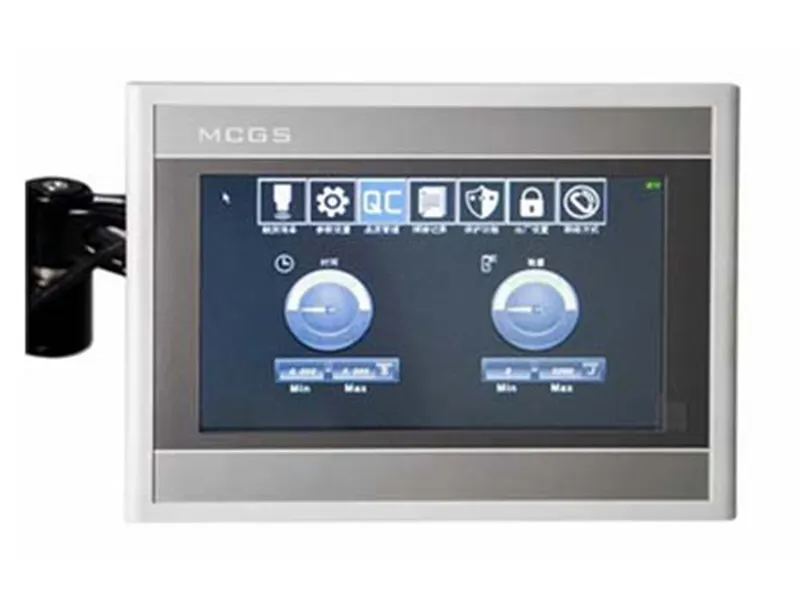

Simplicity, efficiency, and accuracy are the characteristics of the FU2025 ultrasonic welding machine series. The clear 10-inch touch screen allows precise parameters setting and welding process control, and the internal graphic display of the curve supports users to find parameters and establish quality records in the production process, monitoring product quality, and ensuring product consistency.
Integrated with time, energy, ground, absolute position, relative position, and pressure welding modes, the FU2025 series ultrasonic plastic welder also has various triggering modes and various functions. Ports are also provided to support the installation of auxiliary equipment such as tooling clamping, X, and Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, etc., just pair up and set the corresponding ports.
A high-performance ultrasonic welding system combined with sturdy equipment with accurate and well-practiced drive management components realizes the whole process control before, during, and after welding, and can meet complex working conditions and high-precision welding requirements. Application industries include automotive, medical, food, packaging, electricity, hygiene, etc.
♦ LIFTING SYSTEM

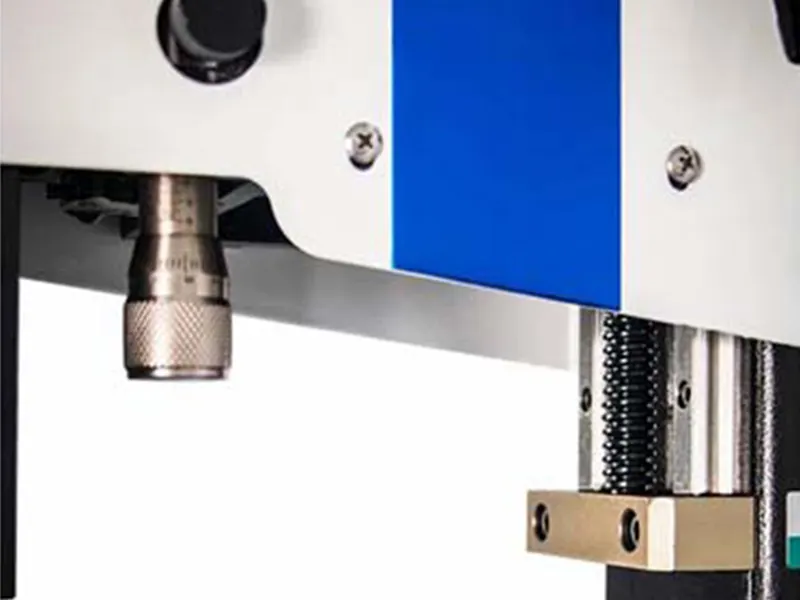

Linear Sliding Rail Lifting System
The linear slide rail lifting system allows users to get rid of manual control of the machine head lift, now the circuit system controls the ultrasonic welding machine head lift, more precise and faster.
♦ EFFICIENT MANAGEMENT
Intelligent Management System
The ultrasonic plastic welder FU2025 series has five management systems, including amplitude management, sonotrode management, safety management, quality management, and data management, precisely controlling the welding parameters, welding machine system safety, and product quality.
Product parameters
|
Frequency |
15kHz |
20kHz |
35kHz |
|
Power |
3200W |
3000W |
1200W |
|
Max. Stroke |
100 mm |
100mm |
100mm |
|
Max.Weld Force |
3020N |
1870N |
1170N |
|
Motion System |
Pneumatics |
||
|
Voltage |
200-240VAC stable output |
||
|
Accuracy |
±0.03mm |
||
|
Welding mode |
Time/Energy/Ground/Absolute Depth/Relative Depth/Pressure |
||
|
Trigger mode |
Time/Pressure/Depth |
||
|
Intelligent management |
Amplitude/Quality/Data/Safety Management |
||
|
Operating Device |
10 inches touch screen panel |
||
|
Feature |
USB data export/welding record/data statistics |
||
|
Working rack |
Square column |
||
|
language |
Chinese/ English |
||
|
Weight |
85kg |
||
|
Dimension |
L685mm*W418mm*H1234mm |
||
|
Warranty |
1 year |
||
|
Auxiliary equipment Support |
tooling clamping, X, and Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, etc. |
||
