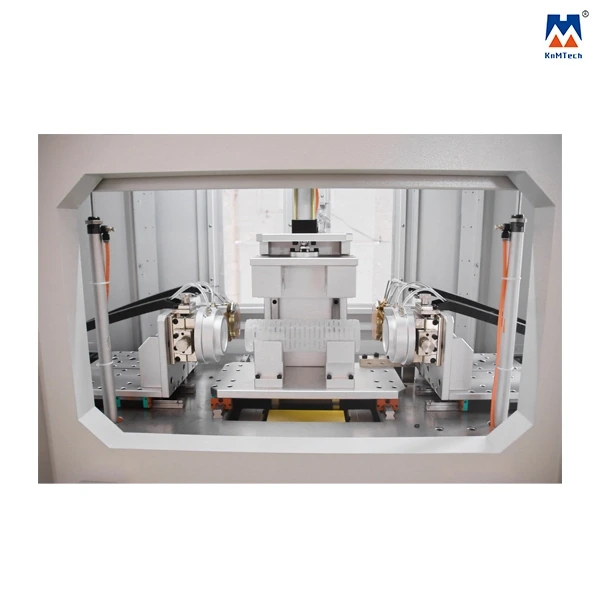

Infrared Welding Machine with Water Cooling System for Filter End Cap Welding
The infrared welding is a bonding way by using the principle based on the thermal effect of electromagnetic radiation. It is controlled in a strictly controlled manner, heating the thermoplastic parts to the melting temperature, and then adopting a welding process similar to hot plate welding.
| Servo Infrared Power | 8000W |
| Servo Hot Plate Power | 6500W |
| Power Supply | 380V/220V 50/60Hz |
| Air Pressure | 5kg/cm2 |
| Heating Accuracy | ±2°C |
| Temperature Range | 0-600°C |
| Capacity | 2pcs/min |
| Dimension | L1.9*W0.75*H1.96m |
| Weight | About 550kg |
| Mold Cooling Way | Water cooling |
* There is no need to replace the hot plate or coating material, which fundamentally solves the problem of sticking mold that often occurs in hot plate welding;
* Greater flexibility in the selection of materials for design;
* Instant on / off design, fast heating speed,high efficiency;
* Give the product a good solder appearance;
* Reduce power consumption, only when the generation of infrared energy will be consumed;
* Shorten the welding cycle and reduce the processing cost;
* With water cooling system for the welding mold, improve process efficiency;
* Heating more evenly by using the infrared electric pottery stove as the heat source;
* The experiment proves that it is more conducive to the formation of good welding strength.
